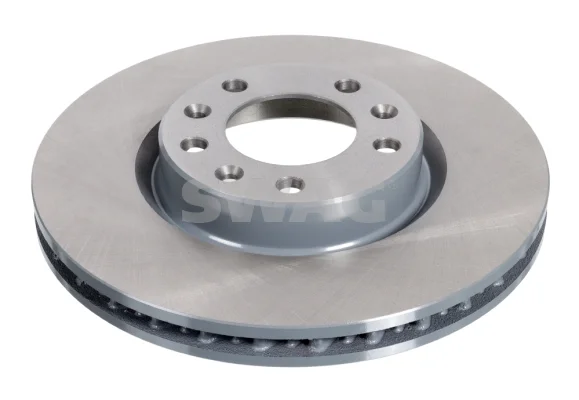

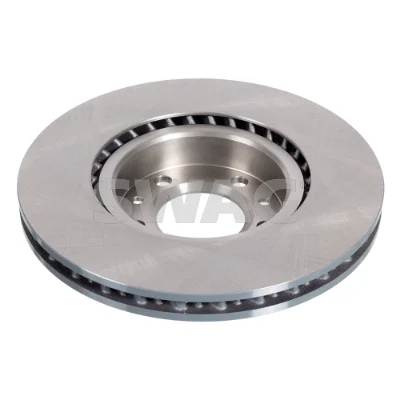

SWAG 62 10 5715 (AutoAnděl: SW62105715)

Brzdový kotouč

Dostupnost
Počet děr ráfku kola 5 -díra
montovaná strana přední osa
Tloušťka/síla [mm] 48 mm
Hmotnost [kg] 6,72 kg
typ brzdového kotouče vnitřně větráno
Síla brzdového kotouče [mm] 26 mm
Minimální tloušťka [mm] 24 mm
Vnější průměr [mm] 283 mm
Centrovací průměr [mm] 71 mm
Kruhový vyvrt O 2 [mm] 108 mm
povrch nátěr
Počet upevňovacích otvorů 3
Status normální
Skupina položky Brzdový kotouč
PEUGEOT 308 CC (4B_) 1.6 HDi 84 kW ( 9HD (DV6C) )
PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi 84 kW ( 9HD (DV6C) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 115 kW ( 5FV (EP6CDT) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 125 92 kW ( 5FA (EP6CDT) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.2 VTi 72 60 kW ( HMZ (EB2F) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi 68 kW ( 9HP (DV6DTED) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi / BlueHDi 115 85 kW ( 9HC (DV6C), BHX (DV6FC), BHZ (DV6FC) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.2 THP 130 96 kW ( HNS (EB2ADTS), HNY (EB2DTS) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 THP 155 115 kW ( 5FV (EP6CDT) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 HDi 92 68 kW ( 9HP (DV6DTED) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 HDi / BlueHDi 115 (LCBHXM, LCBHXT) 85 kW ( 9HC (DV6C), BHX (DV6FC), BHZ (DV6FC) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 2.0 BlueHDi 150 110 kW ( AHR (DW10FD), AHX (DW10FCD) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.2 THP 110 81 kW ( HNP (EB2ADT), HNV (EB2DTM), HNZ (EB2DT) )
TECDOC-číslo motoru 29556
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.2 THP 130 96 kW ( HNS (EB2ADTS), HNY (EB2DTS) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 BlueHDi 120 88 kW ( BHZ (DV6FC) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 2.0 BlueHDi 150 110 kW ( AHX (DW10FCD), AHX (DW10FD) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.2 THP 110 81 kW ( HNP (EB2ADT), HNV (EB2DTM), HNZ (EB2DT) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 BlueHDi 120 88 kW ( BHZ (DV6FC) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi 100 73 kW ( BHY (DV6FD) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 BlueHDi 100 73 kW ( BHY (DV6FD) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GT 205 151 kW ( 5GT (EP6FDTX) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 2.0 GT BlueHDi 180 133 kW ( AHW (DW10FC) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 GT 205 151 kW ( 5GT (EP6FDTX) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 2.0 GT HDi 180 / BlueHDi 180 133 kW ( AHW (DW10FC) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 VTi (LWNFPA) 85 kW ( NFP (EC5) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 THP 125 92 kW ( 5FA (EP6CDT) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 THP 150 (L45GXA) 110 kW ( 5GX (EP6FDTMD) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 150 110 kW ( 5GX (EP6FDTMD) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 163 120 kW ( 5FM (EP6CDTM) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi (L35GNH) 200 kW ( 5GN (EP6FDTR) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi 184 kW ( 5GP (EP6FDTR) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 2.0 GT BlueHDi 180 130 kW ( EHZ (DW10FC) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 2.0 GT BlueHDi 180 130 kW ( EHZ (DW10FC) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.5 BlueHDi 130 96 kW ( YHZ (DV5RC) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.5 BlueHDi 130 96 kW ( YHZ (DV5RC) )
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.5 BlueHDi 100 75 kW ( YHY (DV5RD) )
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.5 BlueHDI 100 75 kW ( YHY (DV5RD) )
PEUGEOT 308 III (FB_, FH_, FP_, F3_, FM_) PureTech 110 (FPHNPL) 81 kW ( HNP (EB2ADT) )
PEUGEOT 308 SW III (FC_, FJ_, FR_, F4_, FN_) PureTech 110 (FRHNPL) 81 kW ( HNP (EB2ADT) )
OPEL ASTRA L (O5) 1.2 (FPHNSL, FPHNSR) 96 kW ( HNS (EB2ADTS) )
OPEL ASTRA L (O5) 1.2 (FPHNPJ) 81 kW ( HNP (EB2ADT), HNV (EB2DTM) )
OPEL ASTRA L Sports Tourer (O5) 1.2 (FRHNSL, FRHNSR) 96 kW ( HNS (EB2ADTS) )
OPEL ASTRA L Sports Tourer (O5) 1.2 (FRHNPJ) 81 kW ( HNP (EB2ADT) )
CITROËN 16 478 674 80
PEUGEOT 16 478 832 80
PEUGEOT 98 039 181 80
BOSCH 0 986 479 C33
BREMBO 09.C658.11
BREMBO 09.C658.1X
KAMOKA 103601
FEBI BILSTEIN 105715
MEYLE 11-15 521 0044
MEYLE 11-15 521 0044/PD
AKRON-MALO 1110545
sbs 1815203747
sbs 1815313747
A.B.S. 18442
MAXGEAR 19-4680
MAXGEAR 19-4680SPORT
VALEO 197649
NK 203747
METELLI 23-1764C
ABAKUS 231-03-162
ATE 24.0126-0183.1
MASTER-SPORT GERMANY 24012601831-PCS-MS
MASTER-SPORT GERMANY 24012601831-PCS-MSP
MASTER-SPORT GERMANY 24012601831-SET-MS
MASTER-SPORT GERMANY 24012601831-SET-MSP
MASTER-SPORT GERMANY 24012601831PR-PCS-MS
MASTER-SPORT GERMANY 24012601831PR-PCS-MSP
MASTER-SPORT GERMANY 24012601831PR-SET-MS
MASTER-SPORT GERMANY 24012601831PR-SET-MSP
KLAXCAR FRANCE 25198z
MAPCO 25340
AUTOMEGA 274758610
NK 313747
MAGNETI MARELLI 360406157601
MAGNETI MARELLI 361302040791
JP GROUP 4163103800
ZIMMERMANN 440.3133.20
ZIMMERMANN 440.3133.52
PAGID 55679
JURID 562992JC
JURID 562992JC-1
EUROBRAKE 5815203747
EUROBRAKE 5815313747
ASHIKA 60-00-0637
ASHIKA 60-00-0637C
JAPKO 600637
JAPKO 600637C
DACO Germany 602808
SASIC 6100041
METZGER 6110839
REMSA 61583.10
TOPRAN 723 710
CIFAM 800-1764C
TRISCAN 8120 28144C
HELLA PAGID 8DD 355 120-481
FTE 9072115
FTE 9082020
TEXTAR 92267903
BLUE PRINT ADP154350
DENCKERMANN B130679
BORG & BECK BBD5352
BORG & BECK BBD5360
FREMAX BD-4660
QUINTON HAZELL BDC6020
BENDIX Braking BDS1045
DELPHI BG4669C
DELPHI BG4669C-19B1
OPTIMAL BS-9394HC
FTE BS7565
FTE BS7565B
WOKING D61583.10
FERODO DDF2405C
TRW DF6698
JAPANPARTS DI-0637
JAPANPARTS DI-0637C
Brake ENGINEERING DI957012
MANDO MBC036261
QUINTON HAZELL MBD6020
MINTEX MDC2607
SAMKO P1020V
SAMKO P1020VR
ASHUKI by Palidium P330-248
QUARO QD6033
QUARO QD6033HC
RAICAM RD01339
ROTINGER RT 21646
ROTINGER RT 21646-GL
ROTINGER RT 21646-GL T3
ROTINGER RT 21646-GL T5
ROTINGER RT 21646-GL T6
ROTINGER RT 21646-GL T9
VAICO V22-40020
VAICO V22-80009
SKF VKBD 80049 V2
