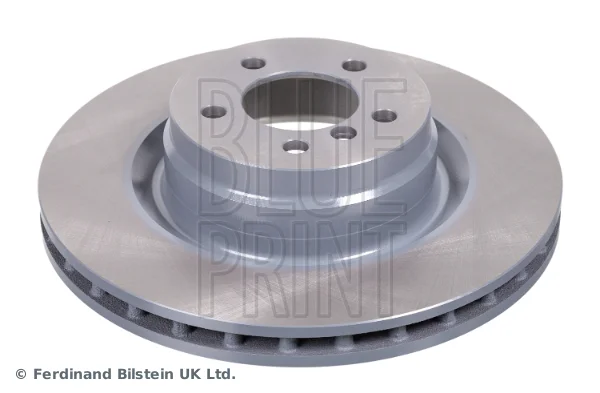

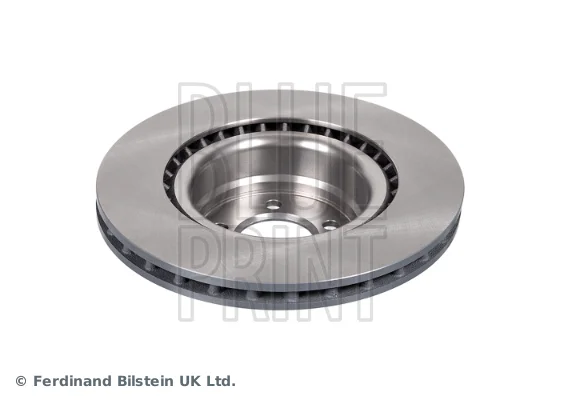

BLUE PRINT ADJ134314
Brzdový kotouč
Dostupnost
| Počet děr ráfku kola | 5 -díra |
|---|---|
| montovaná strana | přední osa |
| Tloušťka/síla [mm] | 81 mm |
| Hmotnost [kg] | 12,67 kg |
| typ brzdového kotouče | vnitřně větráno |
| Síla brzdového kotouče [mm] | 30 mm |
| Minimální tloušťka [mm] | 27 mm |
| Vnější průměr [mm] | 360 mm |
| Centrovací průměr [mm] | 79 mm |
| Kruhový vyvrt O 2 [mm] | 120 mm |
| povrch | nátěr |
| Počet upevňovacích otvorů | 1 |
| Dbejte servisních informaci | Ano |
| Status | normální |
| Skupina položky | Brzdový kotouč |
| BOSCH | 0 986 479 557 |
|---|---|
| BOSCH | 0 986 AB5 918 |
| BREMBO | 09.9372.21 |
| AKRON-MALO | 1110851 |
| A.B.S. | 17721 |
| sbs | 1815204044 |
| sbs | 1815314044 |
| NK | 204044 |
| SWAG | 22 94 3891 |
| TRUCKTEC AUTOMOTIVE | 22.35.103 |
| METELLI | 23-1169C |
| ATE | 24.0130-0197.1 |
| NK | 314044 |
| MAGNETI MARELLI | 360406055700 |
| MAGNETI MARELLI | 360406055701 |
| FEBI BILSTEIN | 43891 |
| ZIMMERMANN | 450.5204.20 |
| ZIMMERMANN | 450.5204.54 |
| ZIMMERMANN | 450.5204.55 |
| MEYLE | 53-83 521 0007/PD |
| PAGID | 54784 |
| PAGID | 54784HC |
| CHAMPION | 563022CH-1 |
| JURID | 563022JC-1 |
| EUROBRAKE | 5815204044 |
| EUROBRAKE | 5815314044 |
| ASHIKA | 60-0L-L03 |
| ASHIKA | 60-0L-L03C |
| JAPKO | 60L03 |
| JAPKO | 60L03C |
| REMSA | 62063.10 |
| CIFAM | 800-1169C |
| TRISCAN | 8120 17134C |
| HELLA PAGID | 8DD 355 115-611 |
| HELLA PAGID | 8DD 355 123-032 |
| HELLA PAGID | 8DD 355 124-491 |
| HELLA PAGID | 8DD 355 128-981 |
| FTE | 9071174 |
| FTE | 9081265 |
| TEXTAR | 92178400 |
| TEXTAR | 92178403 |
| TEXTAR | 92178405 |
| SAMKO | A4022V |
| BORG & BECK | BBD5830S |
| FREMAX | BD-7358 |
| QUINTON HAZELL | BDC5758 |
| BENDIX Braking | BDS1842 |
| DELPHI | BG9009 |
| DELPHI | BG9009C |
| DELPHI | BG9009C-18B1 |
| OPTIMAL | BS-8444 |
| OPTIMAL | BS-8444HC |
| FTE | BS7330 |
| FTE | BS7330B |
| FERODO | DDF1435 |
| FERODO | DDF1435-1 |
| FERODO | DDF1435C-1 |
| FERODO | DDF1435C-1-D |
| TRW | DF6506S |
| JAPANPARTS | DI-L03 |
| JAPANPARTS | DI-L03C |
| Brake ENGINEERING | DI956438S |
| JAPANPARTS | DIL03JM |
| MANDO | MBC036178 |
| QUINTON HAZELL | MBD5758 |
| MINTEX | MDC1941 |
| MINTEX | MDC81941C |
| QUARO | QD1520HC |
| RAICAM | RD01474 |
| ROTINGER | RT 20987 |
| ROTINGER | RT 20987-GL |
| ROTINGER | RT 20987-GL T3 |
| ROTINGER | RT 20987-GL T5 |
| ROTINGER | RT 20987-GL T6 |
| ROTINGER | RT 20987-GL T9 |
| VAICO | V48-80011 |
