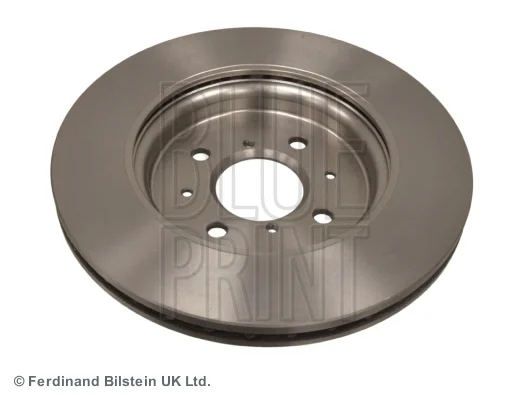

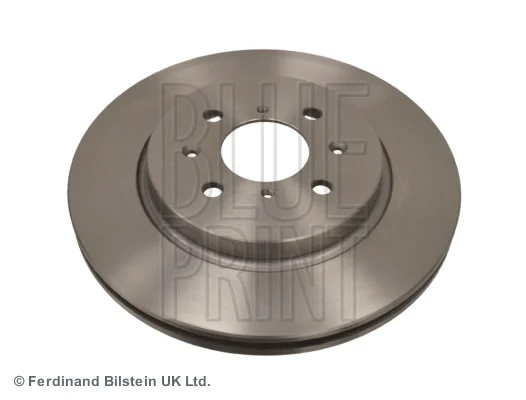

BLUE PRINT ADK84340
Brzdový kotouč
Dostupnost
| Počet děr ráfku kola | 4 -díra |
|---|---|
| montovaná strana | přední osa |
| Tloušťka/síla [mm] | 40 mm |
| Hmotnost [kg] | 5,3 kg |
| typ brzdového kotouče | vnitřně větráno |
| Síla brzdového kotouče [mm] | 22 mm |
| Minimální tloušťka [mm] | 20 mm |
| Vnější průměr [mm] | 272 mm |
| Centrovací průměr [mm] | 60 mm |
| Kruhový vyvrt O 2 [mm] | 100 mm |
| povrch | nátěr |
| Počet upevňovacích otvorů | 4 |
| Status | normální |
| Skupina položky | Brzdový kotouč |
| SUZUKI SWIFT IV (FZ, NZ) 1.3 DDiS (AZG 413D, ZC02S, ZC92S) 55 kW ( D13A, D13AA ) |
|
||
| SUZUKI SWIFT IV (FZ, NZ) 1.2 (AZG 412, ZC72S) 66 kW ( K12B ) |
|
||
| SUZUKI SWIFT IV (FZ, NZ) 1.2 4x4 (AZG 412, ZD72S) 66 kW ( K12B ) |
|
| SUZUKI | 55311-68L50 |
|---|
| BOSCH | 0 986 479 789 |
|---|---|
| BOSCH | 0 986 479 V08 |
| A.B.S. | 09.D252.11 |
| KAMOKA | 103566 |
| FEBI BILSTEIN | 108504 |
| sbs | 1815205236 |
| sbs | 1815315236 |
| A.B.S. | 18241 |
| MAXGEAR | 19-4749 |
| NK | 205236 |
| METELLI | 23-1264C |
| ABAKUS | 231-03-228 |
| ATE | 24.0122-0282.1 |
| MASTER-SPORT GERMANY | 24012202821-PCS-MS |
| MASTER-SPORT GERMANY | 24012202821-PCS-MSP |
| MASTER-SPORT GERMANY | 24012202821-SET-MS |
| MASTER-SPORT GERMANY | 24012202821-SET-MSP |
| KLAXCAR FRANCE | 25546z |
| NK | 315236 |
| SWAG | 33 10 5291 |
| MEYLE | 33-15 521 0026/PD |
| ZIMMERMANN | 540.5301.20 |
| ZIMMERMANN | 540.5301.52 |
| PAGID | 55782 |
| JURID | 562699JC |
| JURID | 562699JC-1 |
| EUROBRAKE | 5815205236 |
| EUROBRAKE | 5815315236 |
| ASHIKA | 60-08-830 |
| ASHIKA | 60-08-830C |
| DACO Germany | 603706 |
| JAPKO | 60830 |
| JAPKO | 60830C |
| SASIC | 6106262 |
| REMSA | 61482.10 |
| CIFAM | 800-1264C |
| TRISCAN | 8120 69140C |
| HELLA PAGID | 8DD 355 123-071 |
| FTE | 9072647 |
| FTE | 9082247 |
| TEXTAR | 92278203 |
| DENCKERMANN | B130675 |
| BORG & BECK | BBD5394 |
| FREMAX | BD-6065 |
| BENDIX Braking | BDS1406 |
| DELPHI | BG5222C |
| FTE | BS7814 |
| FTE | BS7814B |
| WOKING | D61481.10 |
| WOKING | D61482.10 |
| FERODO | DDF2410C |
| TRW | DF6135 |
| JAPANPARTS | DI-830 |
| JAPANPARTS | DI-830C |
| Brake ENGINEERING | DI956969 |
| HERTH+BUSS JAKOPARTS | J3308032 |
| ASHUKI by Palidium | K016-60 |
| MINTEX | MDC2713 |
| NIPPARTS | N3308027 |
| RAICAM | RD01282 |
| ROTINGER | RT 21335 |
| ROTINGER | RT 21335-GL |
| ROTINGER | RT 21335-GL T3 |
| ROTINGER | RT 21335-GL T5 |
| ROTINGER | RT 21335-GL T6 |
| ROTINGER | RT 21335-GL T9 |
| SKF | VKBD 80185 V2 |
