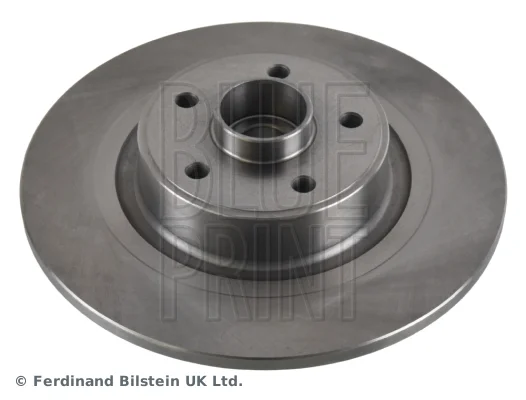

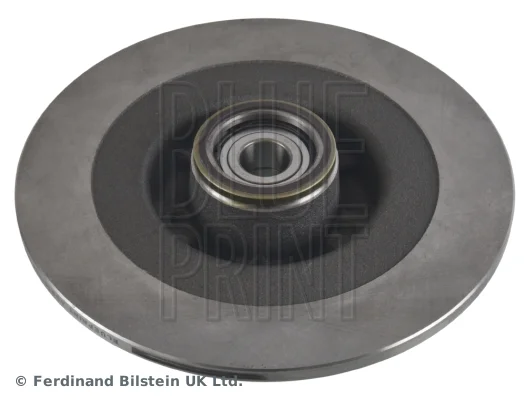

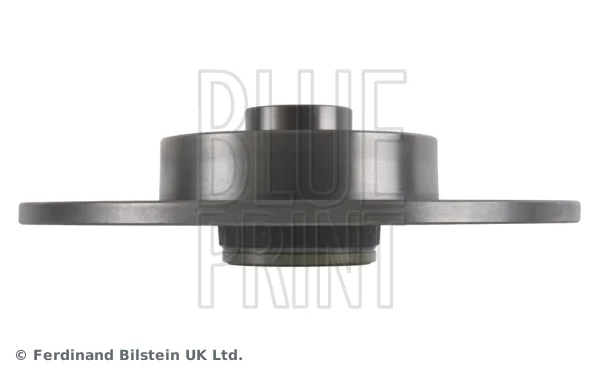

BLUE PRINT ADR164336

Brzdový kotouč

Brzdový kotouč
Dostupnost
Počet děr ráfku kola 5 -díra
montovaná strana Zadní náprava
Tloušťka/síla [mm] 85 mm
Hmotnost [kg] 8,4 kg
typ brzdového kotouče plný
Síla brzdového kotouče [mm] 11 mm
Minimální tloušťka [mm] 9,5 mm
Vnější průměr [mm] 300 mm
Centrovací průměr [mm] 52 mm
Kruhový vyvrt O 2 [mm] 108 mm
povrch olejováno
Doplňující výrobek/info 2 s ABS senzorem
Doplňující výrobek/info 2 s ložiskem (kola)
Status normální
Skupina položky Brzdový kotouč
RENAULT VEL SATIS (BJ0_) 2.0 16V Turbo (BJ0K) 120 kW ( F4R 762, F4R 763 )
RENAULT VEL SATIS (BJ0_) 3.5 V6 (BJ0R, BJ0V, BJ0U) 177 kW ( V4Y 701, V4Y 711, V4Y 715 )
RENAULT VEL SATIS (BJ0_) 2.2 dCi (BJ0E, BJ0F) 110 kW ( G9T 702, G9T 703 )
RENAULT VEL SATIS (BJ0_) 3.0 dCi (BJ0J, BJ0N) 130 kW ( P9X 701 )
RENAULT ESPACE IV (JK0/1_) 2.0 Turbo (JK0A, JK0B, JK0N) 120 kW ( F4R 794, F4R 795, F4R 796, F4R 797 )
TECDOC-číslo motoru 17060
RENAULT ESPACE IV (JK0/1_) 2.2 dCi (JK0H) 110 kW ( G9T 742, G9T 743 )
RENAULT ESPACE IV (JK0/1_) 3.5 V6 (JK00, JK0F, JK0P, JK0S, JK0W) 177 kW ( V4Y 711, V4Y 715 )
RENAULT ESPACE IV (JK0/1_) 3.0 dCi (JK0J, JK0V) 130 kW ( P9X 701 )
RENAULT ESPACE IV (JK0/1_) 2.0 (JK09) 100 kW ( F4R 792 )
RENAULT ESPACE IV (JK0/1_) 1.9 dCi (JK0U, JK0G) 88 kW ( F9Q 680, F9Q 820, F9Q 826 )
RENAULT VEL SATIS (BJ0_) 2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H) 102 kW ( G9T 600, G9T 606, G9T 607, G9T 700, G9T 702 )
TECDOC-číslo motoru 21209
RENAULT VEL SATIS (BJ0_) 2.0 16 V Turbo 125 kW ( F4R 766, F4R 767 )
RENAULT VEL SATIS (BJ0_) 2.2 dCi (BJ0H) 85 kW ( G9T 600, G9T 702 )
RENAULT ESPACE IV (JK0/1_) 2.0 (JK0A, JK1D, JK0N) 125 kW ( F4R 796, F4R 797, F4R 896, F4R 897 )
RENAULT ESPACE IV (JK0/1_) 2.0 dCi (JK01, JK02, JK1J, JK1K, JK1H) 110 kW ( M9R 740, M9R 750, M9R 814, M9R 815, M9R 858 )
TECDOC-číslo motoru 23508
RENAULT ESPACE IV (JK0/1_) 2.0 dCi (JK03, JK04, JK1C, JK1G, JK1J, JK1K) 127 kW ( M9R 760, M9R 761, M9R 762, M9R 763, M9R 812, M9R 815, M9R 859 )
TECDOC-číslo motoru 23899
RENAULT ESPACE IV (JK0/1_) 3.0 dCi (JK0E, JK0Y) 133 kW ( P9X 715 )
RENAULT VEL SATIS (BJ0_) 2.0 dCi (BJ03) 110 kW ( M9R 760 )
RENAULT VEL SATIS (BJ0_) 2.0 dCi (BJ03, BJ0B) 127 kW ( M9R 760, M9R 762, M9R 763 )
RENAULT VEL SATIS (BJ0_) 3.0 dCi (BJ0S) 133 kW ( P9X 715 )
RENAULT ESPACE IV (JK0/1_) 2.2 dCi (JK07) 102 kW ( G9T 645 )
RENAULT ESPACE IV (JK0/1_) 1.9 dCi (JK0U) 85 kW ( F9Q 820 )
RENAULT ESPACE IV (JK0/1_) 2.0 dCi (JK02, JK03) 96 kW ( M9R 740, M9R 750, M9R 760, M9R 761, M9R 762, M9R 763 )
TECDOC-číslo motoru 23508
RENAULT ESPACE IV (JK0/1_) 2.0 (JK0K) 98 kW ( F4R 790 )
RENAULT VEL SATIS (BJ0_) 3.5 (BJ01) 170 kW ( V4Y 715 )
RENAULT 40 20 216 51R
RENAULT 43 20 259 45R
RENAULT 43 20 290 79R
RENAULT 82 00 002 874
RENAULT 82 00 244 108
RENAULT 82 00 649 353
BOSCH 0 986 479 083
BOSCH 0 986 479 276
BREMBO 08.A239.17
A.B.S. 08.A239.37
KAMOKA 1032772
AKRON-MALO 1110474
MAPCO 15142
MAPCO 15142C
MEYLE 16-15 523 4118
A.B.S. 17451
A.B.S. 17451C
sbs 1815203943
sbs 1815203962
sbs 1815313962
VALEO 186893
MAXGEAR 19-1965
MAXGEAR 19-2707SPORT
VALEO 197310
VEMA 19931
MASTER-SPORT GERMANY 201101000
MASTER-SPORT GERMANY 201101000P
NK 203943
NK 203962
METELLI 23-1396
ABAKUS 231-04-140
ATE 24.0111-0100.2
MASTER-SPORT GERMANY 2401110100B-PCS-MS
MASTER-SPORT GERMANY 2401110100B-PCS-MSP
MASTER-SPORT GERMANY 2401110100B-SET-MS
MASTER-SPORT GERMANY 2401110100B-SET-MSP
MASTER-SPORT GERMANY 2401110100BPR-PCS-MS
MASTER-SPORT GERMANY 2401110100BPR-PCS-MSP
MASTER-SPORT GERMANY 2401110100BPR-SET-MS
MASTER-SPORT GERMANY 2401110100BPR-SET-MSP
MASTER-SPORT GERMANY 24011101571-PCS-MS
MASTER-SPORT GERMANY 24011101571-PCS-MSP
MASTER-SPORT GERMANY 24011101571PR-PCS-MS
MASTER-SPORT GERMANY 24011101571PR-PCS-MSP
KLAXCAR FRANCE 25099a
KLAXCAR FRANCE 25099z
MAPCO 26157
NK 313962
BIRTH 3411
MAGNETI MARELLI 360406061100
MAGNETI MARELLI 360406066000
KRAFT AUTOMOTIVE 4105007
FEBI BILSTEIN 44018
ZIMMERMANN 470.2429.00
MAPCO 47173
PAGID 54195
PAGID 54598
JURID 562375J
JURID 562375J-1
EUROBRAKE 5815203943
EUROBRAKE 5815203962
EUROBRAKE 5815313962
SWAG 60 94 4018
DACO Germany 603025
ASHIKA 61-00-0702
ASHIKA 61-00-0702C
SASIC 6104006
JAPKO 610702
JAPKO 610702C
METZGER 6110058
METZGER 6111045
VALEO 675400
REMSA 6999.00
REMSA 6999.20
TOPRAN 701 097
OPTIMAL 702976BS4
Schaeffler FAG 713 5309 60
CIFAM 800-1396
TRISCAN 8120 25147C
AUTEX 843021
AUTEX 843042
HELLA PAGID 8DD 355 123-321
FTE 9071390
TEXTAR 92119500
TEXTAR 92159800
TEXTAR 92159803
GSP 9230142
GSP 9230142K
DENCKERMANN B130594
DENCKERMANN B130866
BORG & BECK BBD5785S
FREMAX BD-4108-KT
QUINTON HAZELL BDC5468
BENDIX Braking BDS1383
DELPHI BG3732
DELPHI BG9024RS
DELPHI BG9024RSC
OPTIMAL BS-9032
OPTIMAL BS-9032C
FTE BS5468LS
BORG & BECK BWK981
WOKING D6999.00
WOKING D6999.20
FERODO DDF1654
FERODO DDF1654-1
FERODO DDF1655
FERODO DDF1655-1
TRW DF4413BS
BREDA LORETT DFM0007
Brake ENGINEERING DI956429
Brake ENGINEERING DI956672S
JAPANPARTS DP-0702
JAPANPARTS DP-0702C
FLENNOR FR791865
SNR KF155.109U
SNR KF155.110U
SNR KF155.111U
SNR KF155.121U
SNR KF155.83U
SNR KF155.90U
SNR KF155.91U
SNR KF155.94U
DAYCO KWD007D
LUCAS LKBD69076
QUINTON HAZELL MBD5468
MINTEX MDC1537
QUARO QD7845
SAMKO R1022PCA
SAMKO R1022PRCA
SNR R155.89
RAICAM RD01546
MOOG RE-WB-11514D1
REPKIT RKB2158
REPKIT RKB2313
REPKIT RKB2314
REPKIT RKB2445
REPKIT RKB2446
REPKIT RKB2483
REPKIT RKB2525
REPKIT RKB2621
REPKIT RKB2822
ROTINGER RT 3227BS
ROTINGER RT 3227BS-GL
ROTINGER RT 3227BS-GL T3
ROTINGER RT 3227BS-GL T5
ROTINGER RT 3227BS-GL T6
ROTINGER RT 3227BS-GL T9
VAICO V46-40010
SKF VKBD 1010
